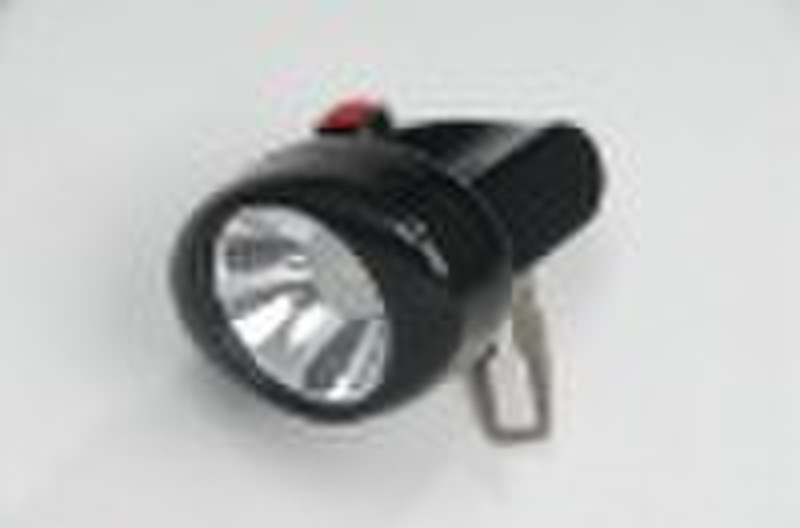

black KL2LM(A): Cordless Caplamp,

Main characteristics:(1). Its volume is small,its weightness is very light,its lifetime is very long,it is portable and high efficiency and energy saving. (2). Its main light source made from high-power 1 W LED illuminator, illumination≥2500Lux, Its assisting light source made from 6 paster type LED illuminator. (3).The mining lamp outer shell made from import PC/ABS alloy material,which charactered with good impact toughness, anti-static,waterproof and explosion-proof, improve the safety performance of mining lamp. (4). Its does not require any maintaince,and also not require change illuminator. (5). PTC and safety protected high quanlity circuit are inserted in the battery,and the short circuit time is shorter than 20ms, which charactered with anti-lavishly charging, anti-lavishly discharging,protection of short circuit and so on.it is very safety. (6). The Main light source and Assisting light source control by switchs, alternating the Main light source and Assisting light source according to request.switch on the mian light source,the output constant current is 120mA±5mA, when the battery voltage drop to 3.1V±0.1V,the lamp alternate to Assisting light source,it can continue to keep working 2 hours,ensure the miner’s safety. (7).Normally, working current is 120mA, also can made-to-order according to the request of customer, the illumination of stronger model can stronger than 5000Lux. Main technical parameters No.Name of parameterUnitValueRemark1Charging voltageV52Rated capacityAh2.43Rated voltageV3.74Continuous lighting timeMain light sourceh≥18Assisting light source≥505Nominal currentMain light sourcemA1206Assisting light sourcemA607IlluminationLuminous from light upLx≥2500At a distance of 1 meter8Luminous after 11 hours≥15009Charging timeNormal usingh≤610Life of accumulatorsCycling time≥50011Weightg130Including battery
